Using KOF

Most of the time, you'll access KOF's data through Grafana.

Access to Grafana

To make Grafana available, start with these steps:

1. Get the Grafana username and password:

   kubectl get secret -n kof grafana-admin-credentials -o yaml | yq '{
     "user": .data.GF_SECURITY_ADMIN_USER | @base64d,
     "pass": .data.GF_SECURITY_ADMIN_PASSWORD | @base64d
   }'


2. Forward a port to the Grafana dashboard:

   kubectl port-forward -n kof svc/grafana-vm-service 3000:3000


3. Login to http://127.0.0.1:3000/dashboards with the username/password printed above.

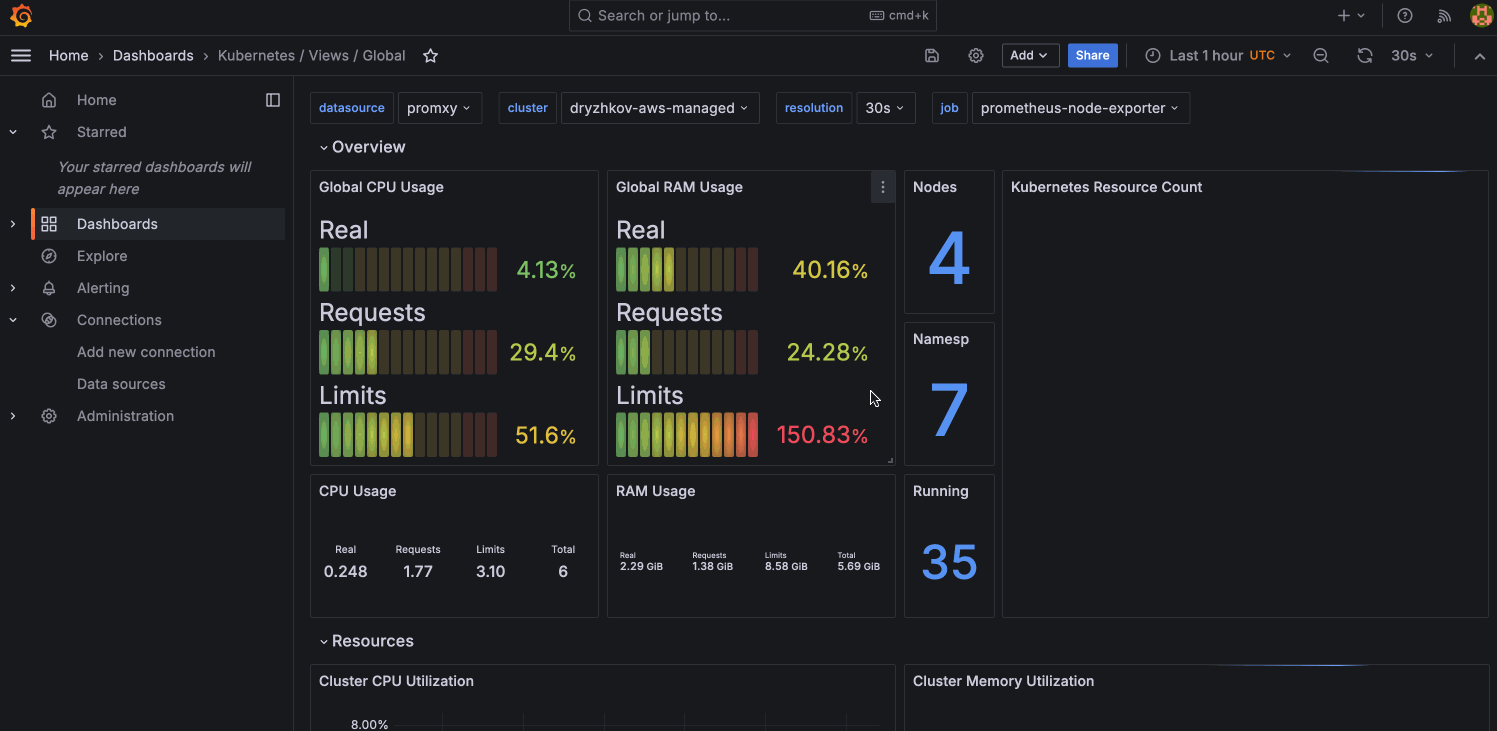

4. Open a dashboard and select any cluster:

Single Sign-On

Port forwarding, as described above, is a quick solution.

Single Single-On provides better experience. If you want to enable it, please apply this advanced guide: SSO for Grafana.

Cluster Overview

From here you can get an overview of the cluster, including:

• Health metrics
• Resource utilization
• Performance trends
• Cost analysis

Logging Interface

The logging interface will also be available, including:

• Real-time log streaming
• Full-text search
• Log aggregation
• Alert correlation

Dashboard Categories

KOF ships with dashboards across: * Infrastructure: Provides infrastructure-related metrics, such as kube clusters, nodes, API server, networking, storage, or GPU. * Applications: Provides metrics for applications, such as VictoriaMetrics, VictoriaLogs, Jaeger and OpenCost. * Service Mesh: Provides metrics for service mesh, such as Istio control-plane and traffic. * Platform: Provides metrics for the platform itself, including KCM, Cluster API, and Sveltos.

Dashboard Lifecycle (GitOps Workflow)

All dashboards are managed as code to keep environments consistent. To add or change a dashboard, follow these steps:

Add a new dashboard 1. Create a YAML file under charts/kof-dashboards/files/dashboards/ with the new dashboard definition. 2. Commit and push the change to Git. 3. Your CI/CD pipeline applies the Helm chart to the target cluster.

Update an existing dashboard 1. Edit the corresponding YAML file. 2. Commit and push changes. 3. CI/CD will roll out the update automatically.

Delete a dashboard 1. Remove the YAML file. 2. Commit and push changes. 3. CI/CD pipeline removes the dashboard from Grafana.

Warning

Avoid editing dashboards directly in the Grafana UI. Changes will be overwritten by the next Helm release.

Cost Management (OpenCost)

KOF includes OpenCost, which provides cost management features for Kubernetes clusters. Common signals available in Grafana are: * node_total_hourly_cost (per-node hourly cost) * Namespace and pod-level cost allocation * Historical spend trends and efficiency ratios

Once you have this information, you can optimize your cluster. Typical optimizations include: * Identify under-utilized resources and right-size workloads * Budgeting and monitoring with Grafana alerts

Common OpenCost metrics include:

Metric	Description
node_total_hourly_cost	Hourly cost per node (includes CPU, memory, storage)
namespace_cpu_cost	CPU cost aggregated by namespace
namespace_memory_cost	Memory cost aggregated by namespace
pod_cost	Cost allocation at pod granularity
cluster_efficiency	Ratio of requested vs actual resource usage

These metrics appear in the pre-installed Grafana FinOps dashboards.

Access to Jaeger

Jaeger UI of each regional cluster can be accessed by following these steps:

1. Ensure you have the regional-kubeconfig file created on the verification step.

2. If you've applied the Istio section:

   • Forward a port to the Jaeger UI:

     KUBECONFIG=regional-kubeconfig kubectl port-forward \
       -n kof svc/kof-storage-jaeger-query 16686:16686


   • Open the link http://127.0.0.1:16686/search and explore the Jaeger UI.

3. If you have not applied the Istio section:

   • Ensure you have the REGIONAL_DOMAIN variable set on the installation step.

   • Get the regional Jaeger username and password:

     KUBECONFIG=regional-kubeconfig kubectl get secret \
       -n kof jaeger-admin-credentials -o yaml | yq '{
       "user": .data.username | @base64d,
       "pass": .data.password | @base64d
     }'


   • Get the the Jaeger UI URL, open it, and login with the username/password printed above:

     echo https://jaeger.$REGIONAL_DOMAIN


Access to the KOF UI

When the TargetAllocator is in use, the configuration of OpenTelemetryCollectors Prometheus receivers is distributed across the cluster.

The KOF UI collects metrics metadata from the same endpoints that are scraped by the Prometheus server:

graph TB
    KOF_UI[KOF UI] --> C1OTC11
    KOF_UI --> C1OTC1N
    KOF_UI --> C1OTC21
    KOF_UI --> C1OTC2N
    KOF_UI --> C2OTC11
    KOF_UI --> C2OTC1N
    KOF_UI --> C2OTC21
    KOF_UI --> C2OTC2N
    subgraph Cluster1
    subgraph C1Node1[Node 1]
        C1OTC11[OTel Collector]
        C1OTC1N[OTel Collector]
    end
    subgraph C1NodeN[Node N]
        C1OTC21[OTel Collector]
        C1OTC2N[OTel Collector]
    end

    C1OTC11 --PrometheusReceiver--> C1TA[TargetAllocator]
    C1OTC1N --PrometheusReceiver--> C1TA
    C1OTC21 --PrometheusReceiver--> C1TA
    C1OTC2N --PrometheusReceiver--> C1TA
    end
    subgraph Cluster2
    subgraph C2Node1[Node 1]
        C2OTC11[OTel Collector]
        C2OTC1N[OTel Collector]
    end
    subgraph C2NodeN[Node N]
        C2OTC21[OTel Collector]
        C2OTC2N[OTel Collector]
    end

    C2OTC11 --PrometheusReceiver--> C2TA[TargetAllocator]
    C2OTC1N --PrometheusReceiver--> C2TA
    C2OTC21 --PrometheusReceiver--> C2TA
    C2OTC2N --PrometheusReceiver--> C2TA
    end

You can access the KOF UI by following these steps:

1. Forward a port to the KOF UI:

   kubectl port-forward -n kof deploy/kof-mothership-kof-operator 9090:9090


2. Open the link http://127.0.0.1:9090

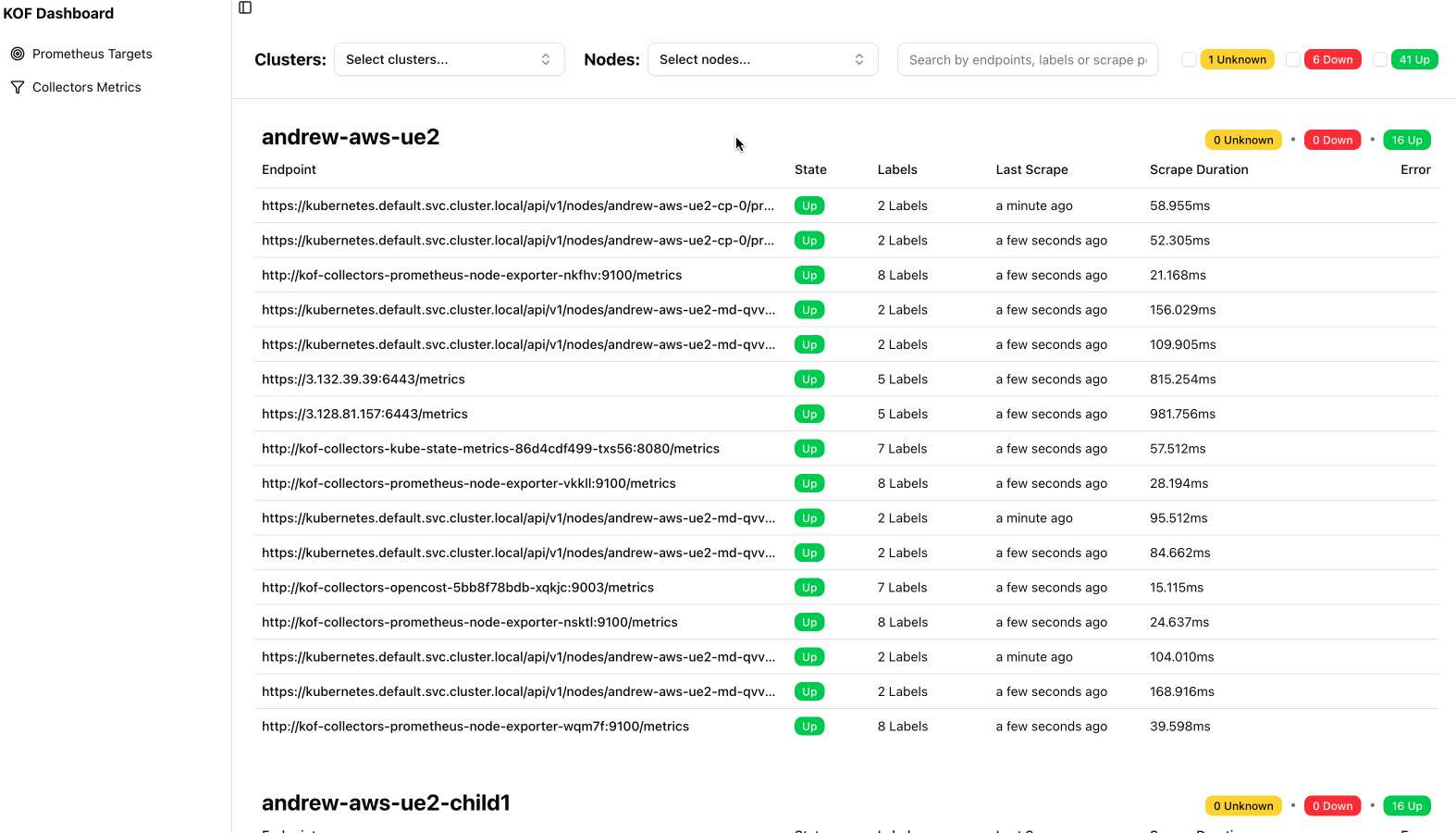

3. Check the state of the endpoints:

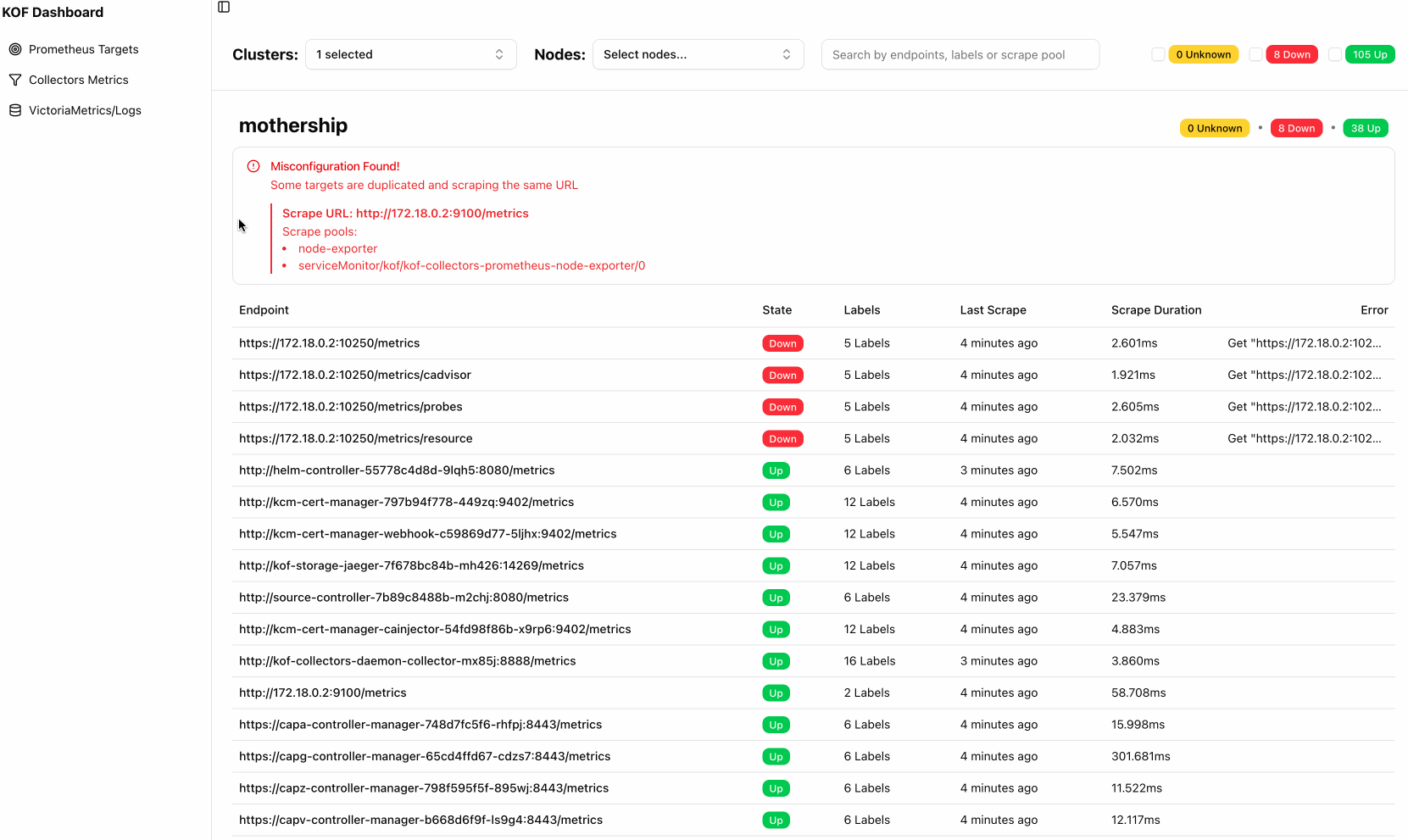

If there is a misconfiguration in the Prometheus targets (for example, if multiple targets scrape the same URL), the UI will display an error:

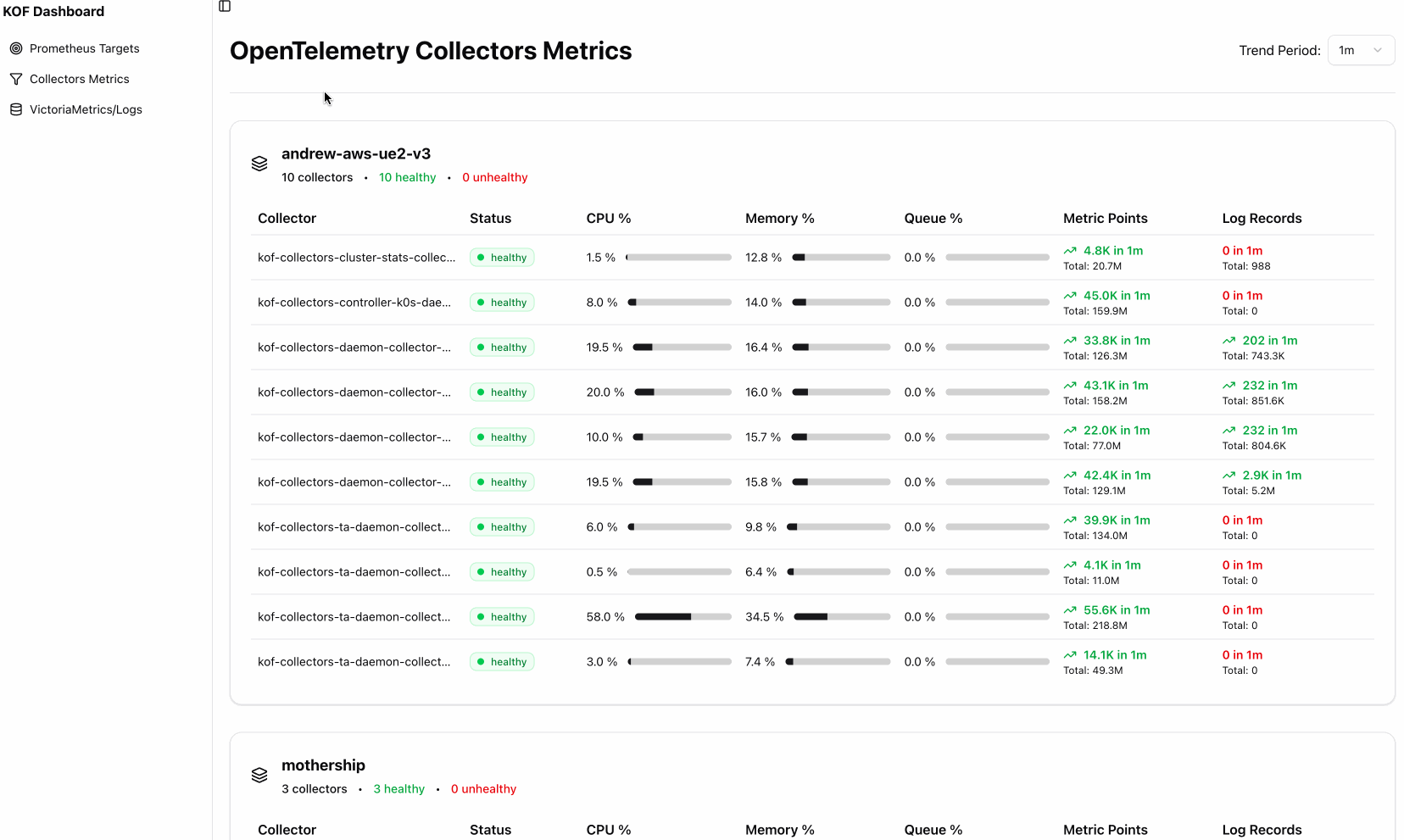

The KOF UI also allows you to monitor internal telemetry from OpenTelemetry collectors and VictoriaMetrics/Logs, enabling comprehensive observability of their health and performance.

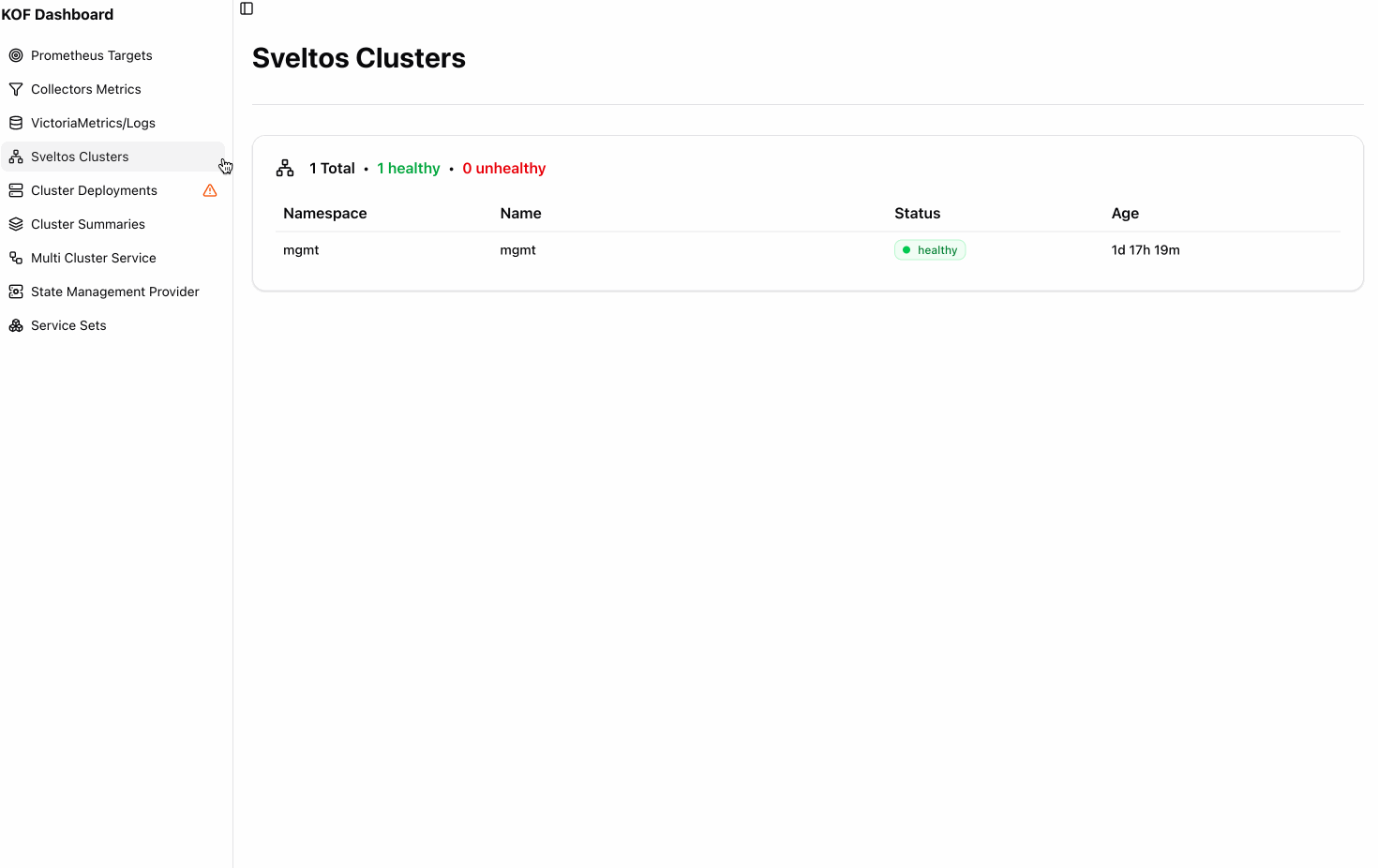

To identify and debug issues in deployed clusters, check if KOF UI shows any errors in these monitored resources:

• ClusterDeployment
• ClusterSummaries
• MultiClusterService
• ServiceSet
• StateManagementProvider
• SveltosCluster
