Using KOF#

Optional Grafana#

  • Grafana installation and automatic configuration are now disabled in KOF by default.
  • If you want to install and enable Grafana, apply the Grafana in KOF guide.
  • Otherwise, check the sections below, showing how to use KOF without Grafana.

Metrics and alerts#

Logs#

  • VictoriaLogs UI:
    • Run in the regional cluster:
      KUBECONFIG=regional-kubeconfig kubectl port-forward \
  -n kof svc/kof-storage-victoria-logs-cluster-vlselect 9471:9471
      To get logs stored from Management to Management (if any), do this port-forward in the management cluster.
    • Open http://127.0.0.1:9471/select/vmui/
    • CLI query for automation:
      curl http://127.0.0.1:9471/select/logsql/query \
  -d 'query=_time:1h' \
  -d 'limit=10'
  • Run inside of Istio mesh:
    curl http://$REGIONAL_CLUSTER_NAME-logs-select:9471/select/logsql/query \
  -d 'query=_time:1h' \
  -d 'limit=10'
  • Run without Istio and port-forwarding:
    VM_USER=$(
  kubectl get secret -n kof storage-vmuser-credentials -o yaml \
  | yq .data.username | base64 -d
)
VM_PASS=$(
  kubectl get secret -n kof storage-vmuser-credentials -o yaml \
  | yq .data.password | base64 -d
)
curl https://vmauth.$REGIONAL_DOMAIN/vls/select/logsql/query \
  -u "$VM_USER":"$VM_PASS" \
  -d 'query=_time:1h' \
  -d 'limit=10'

Traces#

VictoriaTraces provides a scalable, cost-efficient distributed tracing backend that helps k0rdent users observe application performance while supporting FinOps goals by reducing storage and query costs.

  • VictoriaTraces UI:
  • CLI queries for automation:
    • LogSQL:
      curl http://127.0.0.1:10471/select/logsql/query \
  -d 'query=_time:1h' \
  -d 'limit=10'
    • Jaeger HTTP API:
      curl http://127.0.0.1:10471/select/jaeger/api/services

      curl http://127.0.0.1:10471/select/jaeger/api/traces?service=test

Cost Management (OpenCost)#

KOF includes OpenCost, which provides cost management features for Kubernetes clusters. Common metrics (also available in the pre-installed Grafana FinOps dashboards if enabled) are:

Metric Description
node_total_hourly_cost Hourly cost per node (includes CPU, memory, storage)
namespace_cpu_cost CPU cost aggregated by namespace
namespace_memory_cost Memory cost aggregated by namespace
pod_cost Cost allocation at pod granularity
cluster_efficiency Ratio of requested vs actual resource usage

Once you have this information, you can optimize your cluster. Typical optimizations include:

  • Identify under-utilized resources and right-size workloads
  • Budgeting and monitoring with alerts

KOF UI#

When the TargetAllocator is in use, the configuration of OpenTelemetryCollectors Prometheus receivers is distributed across the cluster.

The KOF UI collects metrics metadata from the same endpoints that are scraped by the Prometheus server:

graph TB
    KOF_UI[KOF UI] --> C1OTC11
    KOF_UI --> C1OTC1N
    KOF_UI --> C1OTC21
    KOF_UI --> C1OTC2N
    KOF_UI --> C2OTC11
    KOF_UI --> C2OTC1N
    KOF_UI --> C2OTC21
    KOF_UI --> C2OTC2N
    subgraph Cluster1
    subgraph C1Node1[Node 1]
        C1OTC11[OTel Collector]
        C1OTC1N[OTel Collector]
    end
    subgraph C1NodeN[Node N]
        C1OTC21[OTel Collector]
        C1OTC2N[OTel Collector]
    end

    C1OTC11 --PrometheusReceiver--> C1TA[TargetAllocator]
    C1OTC1N --PrometheusReceiver--> C1TA
    C1OTC21 --PrometheusReceiver--> C1TA
    C1OTC2N --PrometheusReceiver--> C1TA
    end
    subgraph Cluster2
    subgraph C2Node1[Node 1]
        C2OTC11[OTel Collector]
        C2OTC1N[OTel Collector]
    end
    subgraph C2NodeN[Node N]
        C2OTC21[OTel Collector]
        C2OTC2N[OTel Collector]
    end

    C2OTC11 --PrometheusReceiver--> C2TA[TargetAllocator]
    C2OTC1N --PrometheusReceiver--> C2TA
    C2OTC21 --PrometheusReceiver--> C2TA
    C2OTC2N --PrometheusReceiver--> C2TA
    end

You can access the KOF UI by following these steps:

  1. Forward a port to the KOF UI:

    kubectl port-forward -n kof deploy/kof-mothership-kof-operator 9090:9090

  2. Open the link http://127.0.0.1:9090

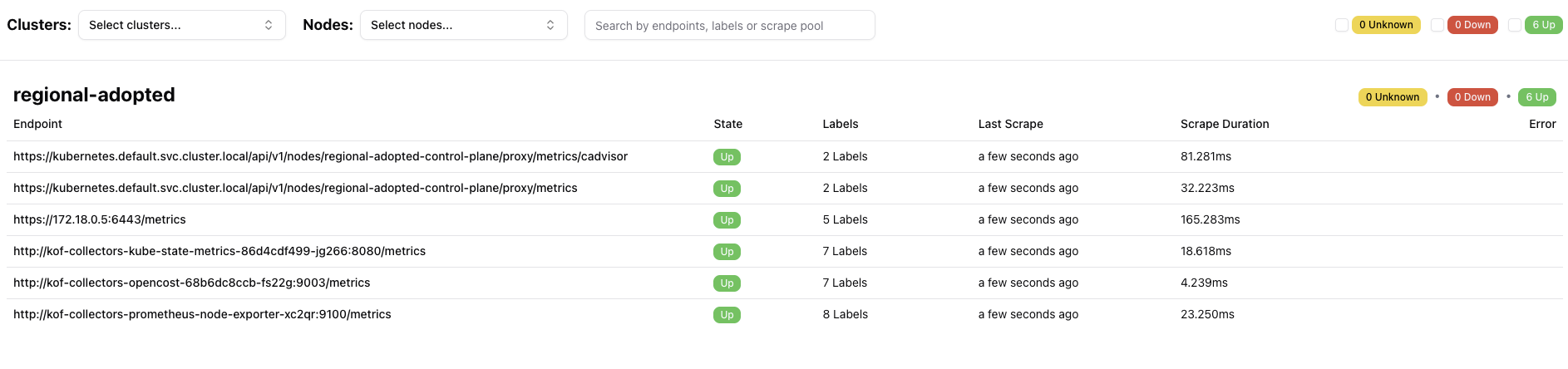

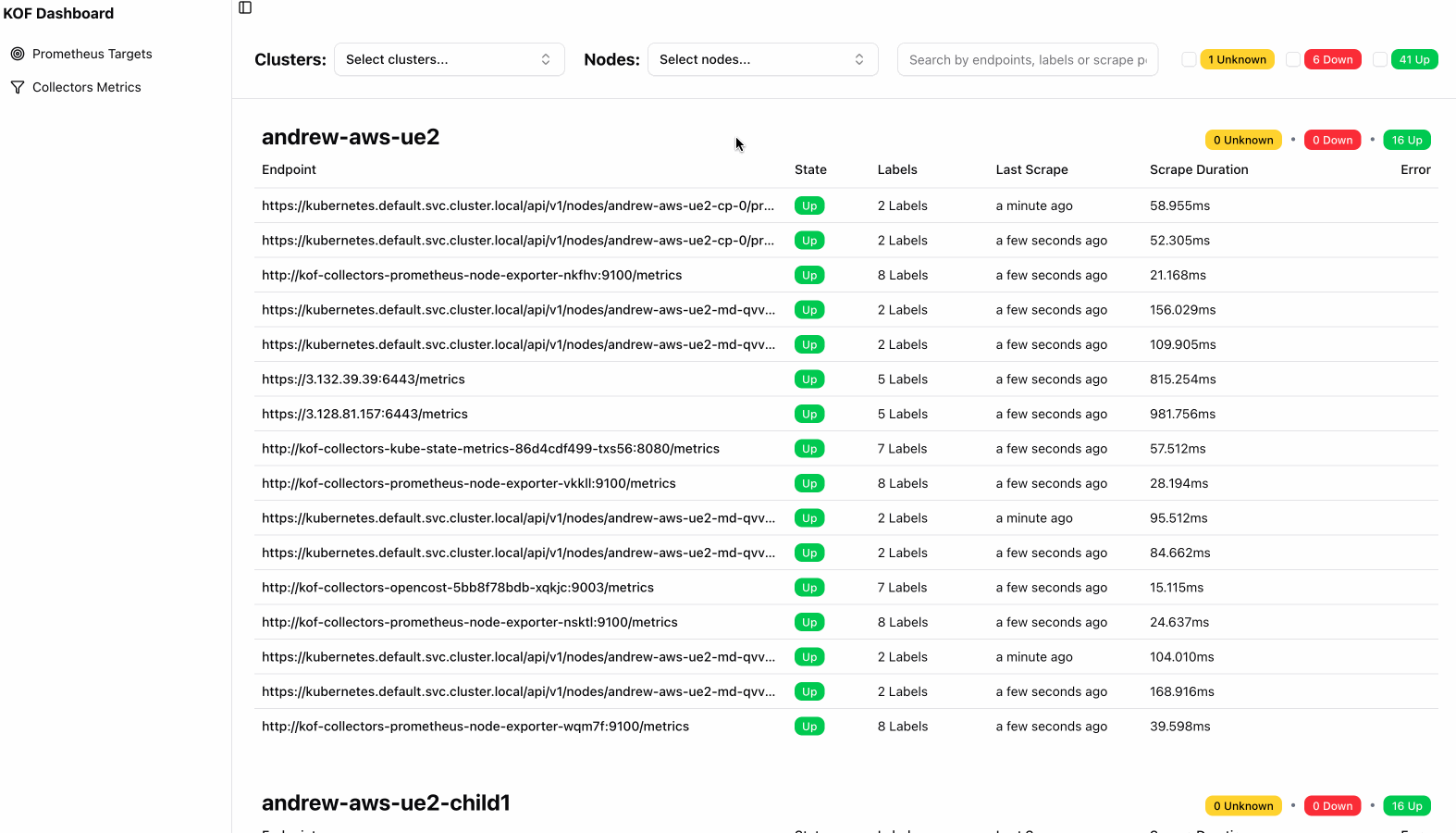

  3. Check the state of the endpoints:

kof-ui-prometheus-targets

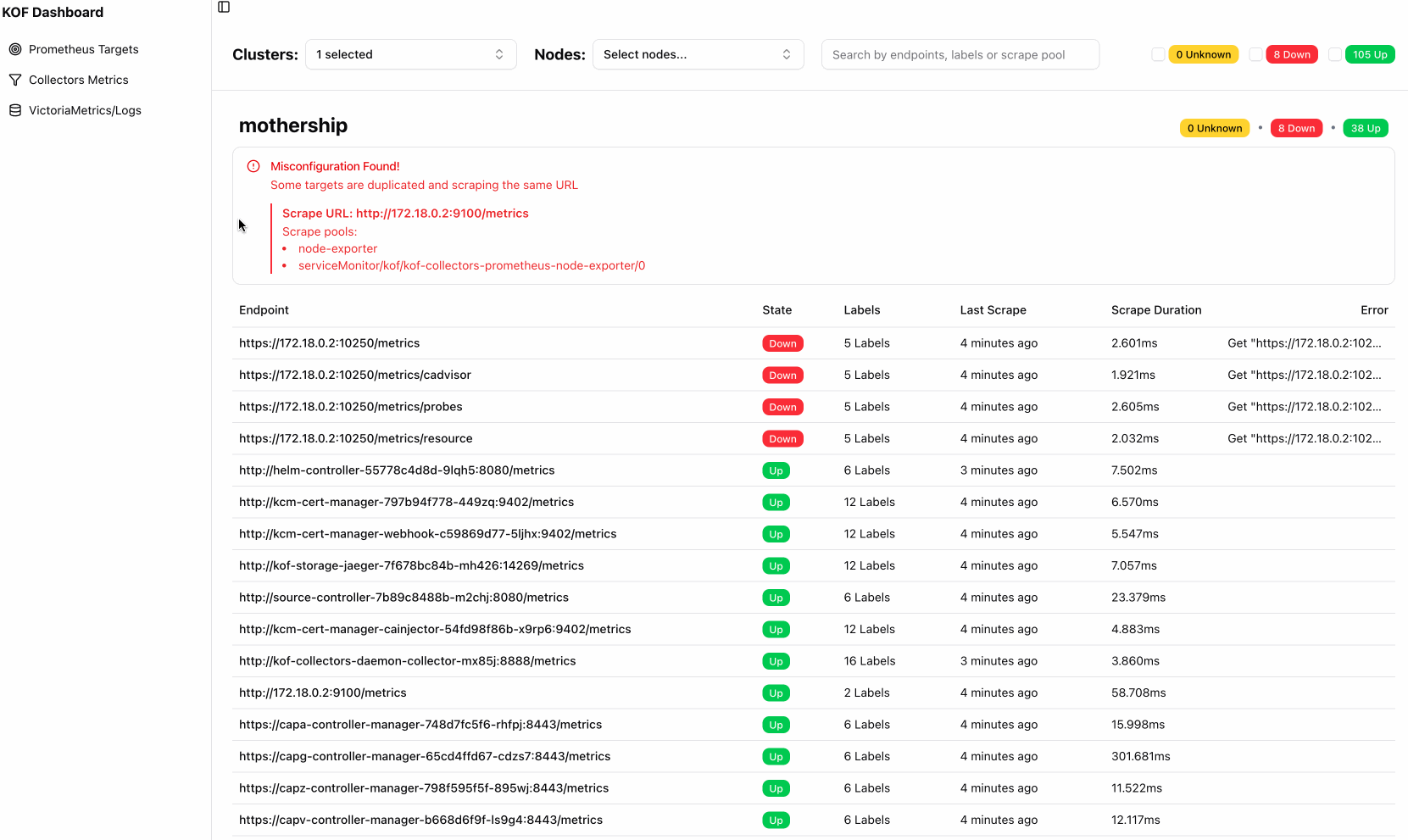

If there is a misconfiguration in the Prometheus targets (for example, if multiple targets scrape the same URL), the UI will display an error:

kof-ui-prometheus-targets-misconfiguration

The KOF UI also allows you to monitor internal telemetry from OpenTelemetry collectors and VictoriaMetrics/Logs, enabling comprehensive observability of their health and performance.

kof-ui-collectors-metrics

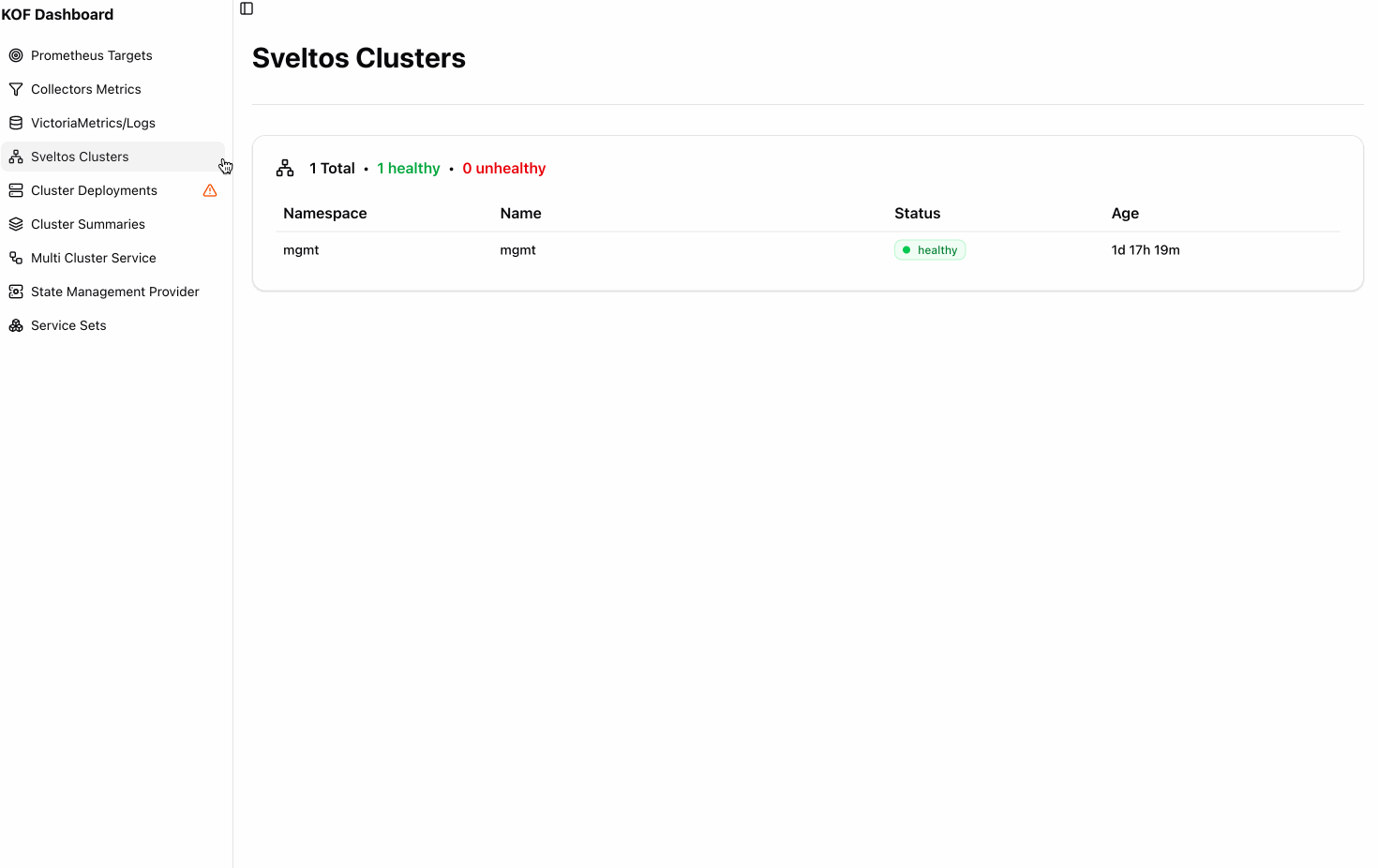

To identify and debug issues in deployed clusters, check if KOF UI shows any errors in these monitored resources:

  • ClusterDeployment
  • ClusterSummaries
  • MultiClusterService
  • ServiceSet
  • StateManagementProvider
  • SveltosCluster

kof-ui-resources-monitoring
